Name of the equipment:

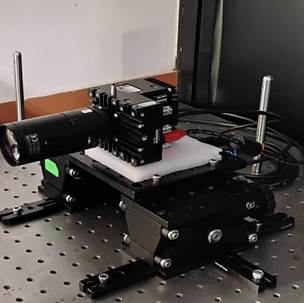

High Speed Camera

Make & Model:

Phantom Ametek & Phantom Miro C211

I-Stem Registration ID-

3245492

Category of Instrument

Imaging equipment

Types of Analysis / Testing

Imaging of close-range, fast moving objects and phenomena at up to 60000 fps.

Application:

Imaging of close-range, fast moving objects and phenomena at up to 60000 fps

Description of Instrument

It is crucial in studying the dynamics of droplet impact, soft-matter deformation, particle laden interface studies etc.

Book through I-STEM: https://www.istem.gov.in/ Slot Booking Link I-STEM Slot Booking link for External User

Booking available for Internal and External Both Requisition form for Internals Externals

Faculty In-charge: Dr. Subramanian Namboodiri V Email ID: varanakkottu@nitc.ac.in Phone number:  +91-9446845124

Technical Staff: Anjali C Email ID: anjalic@nitc.ac.in

Department PHY Office Email ID Department of Physics NITC Location Optofluidics and Interface Science lab Lab Phone No ……………………………….

Features of the equipment ✔ 1800 fps at maximum resolution of 1280x1024 ✔ Maximum frame rate of 67000 fps (at minimum resolution of 64x8).	Unique features/Measurement capabilities,  if any ⮚ 1800 fps at maximum resolution of 1280x1024 ⮚ Maximum frame rate of 67000 fps (at minimum resolution of 64x8).
Instrument Technical Description and Major Specifications (This Specifications Limited to Major 5) ▪ 1.3 MP CMOS sensor ▪ 1800 fps at maximum resolution of 1280x1024 ▪ 16 GB RAM, 240 GB SSD internal storage. ▪ 4.2 seconds recording time at full resolution.	Measurement/Sample specifications: ▪ Requirements depend on the high speed imaging study to be conducted.

Requirements depend on the high speed imaging study to be conducted.

Internal	External Academic Institutes	National R&D Lab	Industry
Rs. 1000/- per hour	Rs. 2000/- per hour	Rs. 3000/- per hour	Rs. 3000/- per hour
