Name
of the equipment:

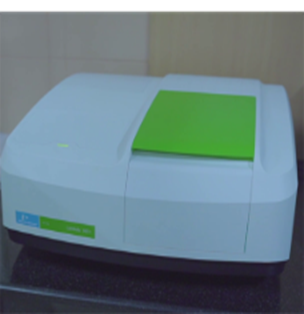

UV-Visible
Spectrophotometer
Make
& Model:
PerkinElmer
Lambda 35 & Lambda 35
I-Stem
Registration ID-
3245486
Category
of Instrument
Characterization
Types
of Analysis / Testing
Application:
It can be used to identify the absorption of ultraviolet
or visible light by liquid or thin-film samples.
Description
of Instrument
The
basis of spectroscopy is the interaction of light and matter.
|
|
Features
of the equipment
It Measures absorbance, reflectance, and
transmittance across the ultraviolet to visible region of electromagnetic
spectrum, offering a broad wavelength range from 200 to 1100 nm.
|
Unique
features/Measurement capabilities, if any
|
|
Instrument
Technical Description and Major Specifications (This Specifications Limited
to Major 5)
▪
Wavelength
range: 190 nm - 1100 ,With Integrating Sphere 220 nm-1400 nm
▪
BandWidth:
0.5, 1, 2, 4 nm Variable
▪
Wavelength
accuracy: ± 0.1 nm
|
Measurement/Sample
specifications:
▪
It can be
used to identify the absorption of ultraviolet or visible light by liquid
or thin-film samples.
|
● Sample type: Liquid, Thin films
coated on glass slide
● Quantity: For liquid samples, a
minimum of 3 mL is required, and a corresponding reference sample must be
provided. For thin film samples, the film should be coated onto a glass slide
with dimensions of 2.5 Χ 2.5 cm, and a plain glass slide should be submitted
as the reference.
● Maximum number of samples accepted
at a time: 5
● Minimum number of days required for
analysis: 4
● (While submitting the samples, a
request form containing the above details, signed by the research guide must
be provided.)
|
|
|
Internal
|
External Academic Institutes
|
National R&D Lab
|
Industry
|
|
|
50
per sample
|
150
per sample
|
200
per sample
|
300
per sample
|
|
|
