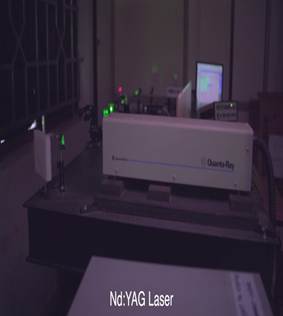

Name of the equipment: Nd: YAG Laser- Quanta Ray INDI-40-10 Make & Model: Spectra Physics, USA Quanta Ray INDI-40-10 I-Stem Registration ID- 3245475 Category of Instrument Fabrication Types of Analysis / Testing Nonlinear optics studies Application: ● Study of Non linearity ● Synthesis of nanoparticles and QDs by laser ablation Description of Instrument Nd YAG pulsed laser with wavelength 1034 nm and 532 nm, Pulse width 7ns, Beam diameter 10mm

Book through I-STEM: https://www.istem.gov.in/ Slot Booking Link I-STEM Slot booking link for external user			Booking available for Internal and External Both Requisition form for Internal External
	Faculty In-charge: Dr. Chandrasekharan K. Email ID: csk@nitc.ac.in Phone number: 9446281246	Technical Staff: Sreeraj  P (LA) sreerajp@nitc.ac.in		Department PHYSICS Office Email ID phyoffice@nitc.ac.in Location Room No.PH101, Department of Physics Lab Phone No ……………………………….

Features of the equipment ✔ High power pulsed laser ✔ it works for two frequencies (Wave length) 532 nm and 1064 nm ✔ Power varies from mJ to J (400 J) ✔ Long pulse and Q switching mode	Unique features/Measurement capabilities, if any ⮚ NLO ⮚ Laser ablation
Instrument Technical Description and Major Specifications ▪ It works for two frequencies (Wave length) 532 nm and 1064 nm ▪ Power varies from mJ to J(400 J) ▪ Pulse width 7ns ▪ Beam diameter 10mm	Measurement/Sample specifications: ▪ Liquid and thin film NLO measurements

● Liquid and thin film sample

Internal	External Academic Institutes	National R&D Lab	Industry
3000/- for one hour	8000/- for one hour	10000/- for one hour	15000/- for one hour
