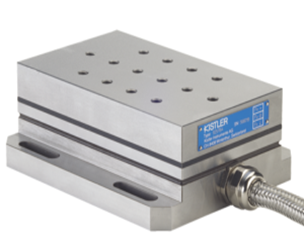

Name of the equipment: MULTICOMPONENT DYNAMOMETER (KISTLER 9256C2) Make & Model: KISTLER,9256C2 I-Stem Registration ID- 3224887 Category of Instrument Advance Manufacturing Centre Application: Cutting force and cutting moment (6 components) measurements. Description of Instrument: Multicomponent Dynamometer for force and moment measurement during machining
Book through I-STEM: https://www.istem.gov.in/ Slot Booking Link I-STEM Slot Booking link for External User	Booking available for Internal and External Both Requisition form for Internal External

Faculty In-charge: Dr. Basil Kuriachen Email ID: bk@nitc.ac.in Phone number:  +91-9947187133

Technical Staff: Sanal PR (TA SG I)   sanal@nitc.ac.in Jithin Krishna M (TA) jithinkrishnam@nitc.ac.in Jijeesh k (ST) jijeeshk@nitc.ac.in

Department MED Office Email ID medoffice@nitc.ac.in Location Advance Manufacturing Centre Production Block Lab Phone No 0495-2286450

Instrument Technical Description and Major Specifications:

Measuring range (Fx, Fy, Fz): -250 – 250 N,

Measuring range (Mx, Mz):-11 – 11 Nm

Sensitivity (Fx, Fz): ~ -26 pC/N;

Sensitivity (Fy): ~ -13 pC/N

Type of sample Required:       Metallic/composite/alloys etc.

                        Maximum size usually limited 75mm x 35mm

Internal	External Academic Institutes	National R&D Lab	Industry
250/- per hour	250/- per hour + GST	250/- per hour + GST	250/- per hour + GST
