Name of the equipment: High Frequency Reciprocating Rig Make & Model: DUCOM & TR-282 I-Stem Registration ID- 3224915 Category of Instrument Characterization and Testing Tool Types of Analysis / Testing Testing Application: Friction and Wear characteristics of Ball Samples

Book through I-STEM: https://www.istem.gov.in/ Slot Booking Link I-STEM Slot Booking link for External User

Booking available for Internal and External Both Requisition form for Internals Externals

Faculty In-charge: Dr.Amit Kumar Singh Email ID: amitsingh@nitc.ac.in Phone number:  +91-8949362395

Technical Staff: Shibin (Senior Technician) shibinr@nitc.ac.in

Department MED Office Email ID medoffice@nitc.ac.in Location Room No. 101 MSED Department Building Lab Phone No 0495-2286485

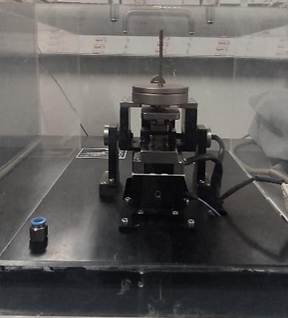

Description of Instrument:  It is an equipment used to find the Coefficient of Friction of lubricants. Here the spherical ball clamped in a holder which is reciprocating to & fro along a cylindrical disc which is fixed at the bottom holder filled with lubricant.

Top Specimen Ball	ϕ6mm
Bottom Specimen Plate	ϕ10 x 3mm
Frequency Range	10-60Hz
Load	1 to 10N

§

Internal	External Academic Institutes	National R&D Lab	Industry
100/- per hour per sample (i.e. If the time taken to test a sample exceeds 1 hr then the user charge will be based on per hour)	500 + 18%GST per hour per sample (i.e. If the time taken to test a sample exceeds 1 hr then the user charge will be based on per hour)	500 + 18%GST per hour per sample (i.e. If the time taken to test a sample exceeds 1 hr then the user charge will be based on per hour)	1000 + 18%GST per hour per sample (i.e. If the time taken to test a sample exceeds 1 hr then the user charge will be based on per hour)
