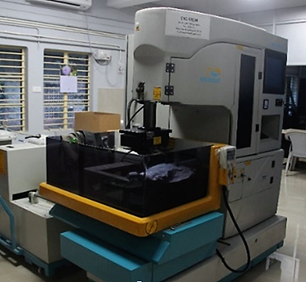

Name of the equipment: Wire Electric Discharge Machine Make & Model: Electronica, ECOCUT-11 I-Stem Registration ID- 3224894 Category of Instrument Production Engineering Types of Analysis / Testing Metal Cutting Application: Precision cutting of hard materials, cutting of complicated shapes, Cutting of small and delicate parts Description of Instrument Capable to perform non-contact 3D contouring, cutting die-making  with a travelling electrically conductive wire as the tool electrode

Book through I-STEM: https://www.istem.gov.in/ Slot Booking Link I-STEM Slot Booking link for External User

Booking available for Internal and External Both Requisition form for Internal External

Faculty In-charge: Dr. Vikash Kumar Email ID: vikash@nitc.ac.in Phone number:  +91-8638366093

Technical Staff: Sanal PR (TA SG I)   sanal@nitc.ac.in Jithin Krishna M (TA) jithinkrishnam@nitc.ac.in Jijeesh k (ST) jijeeshk@nitc.ac.in

Department MED Office Email ID medoffice@nitc.ac.in Location Production Engineering Lab Production Block Lab Phone No 0495-2286450

Instrument Technical Description and Major Specifications:

Max Table size            :  370 x 600 mm

Main table traverse (X,Y)     : 250, 350 mm

Max work piece height         : 200 mm

Max work piece weight         :   300 kg

Max taper cutting angle        : +5ᵒ/100 mm

Dry run speed                         : 80 mm/min

Wire diameter                        : 0.25 mm

Min resolution for X,Y,U,V    :    0.001 mm

Max work piece height          : 250mm

Type of sample Required: Conducting Samples only

Internal	External Academic Institutes	National R&D Lab	Industry
200/- per hour	250/- per hour + GST	250/- per hour + GST	250/- per hour + GST
