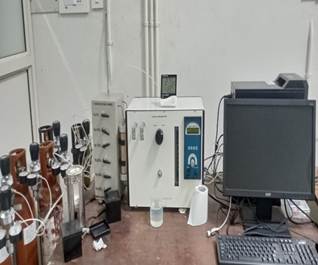

Name of the equipment: Multi-point BET Surface area Analyzer Make & Model: Smart SORB-93 I-Stem Registration ID- 3224875 Category of Instrument Ceramic Lab Application: For inspecting the surface area and pore volume of • Catalysts for automotive, fertilizers and petrochemical industries • Carbon powder for rubber, adsorbents (gas separation and water purification), gas masks, inks, laser printers etc • Minerals such as alumina, clays, pigments, phosphates, silica, zirconia etc • abrasives, adsorbents, biomaterials, ceramics, cement, etc Description of Instrument BET surface area analyzer is one of the most used methods to measure and analyze the surface area of porous materials and nanoparticles. This physical characterization technique provides quantitative data on the specific surface area and pore volume of the solid materials. The method is suitable for a wide range of solid matrices, from catalyst powders to monolithic materials.

Book through I-STEM: https://www.istem.gov.in/ Slot Booking Link I-STEM Slot Booking link for External User

Booking available for Internal and External Both Requisition form for Internal External

Faculty In-charge: Dr. Muhammed Rashad K Email ID: rashad@nitc.ac.in Phone number:

Technical Staff: Sanal PR (TA SG I)   sanal@nitc.ac.in Jithin Krishna M (TA) jithinkrishnam@nitc.ac.in Jijeesh k (ST) jijeeshk@nitc.ac.in

Department MED Office Email ID medoffice@nitc.ac.in Location Ceramic Lab Production Block Lab Phone No 0495-2286450

Instrument Technical Description and Major Specifications:

Smart Sorb 93, Surface Area Analyser is based on the dynamic BET principle. Nitrogen gas is used for adsorption. The dynamic flow method uses a highly sensitive thermal conductivity detector to measure the change in the concentration of an adsorbate/carrier gas mixture during the adsorption or desorption process. It determines the surface area at a single point and it can be enhanced for measuring multi-point surface area and total pore volume analysis with different gas mixture percentage

• Surface Area range - 0.1 m²/gm to 1500 m²/gm - Normal. Extendable up to 2500 m²/gm.

• Accuracy - Typically better than ± 5%

• Reproducibility - Typically better than ± 3%

• Regeneration System Temperature Range: Ambient to 300°C

• Sample holder capacity - 7 ml

Application of Instrument:

For inspecting the surface area and pore volume of

• Catalysts for automotive, fertilizers and petrochemical industries

• Carbon powder for rubber, adsorbents (gas separation and water purification), gas masks, inks, laser printers etc

• Minerals such as alumina, clays, pigments, phosphates, silica, zirconia etc

• abrasives, adsorbents, biomaterials, ceramics, cement, etc

Type of sample Required:

Type of Sample: Powders of particle size less than 2 mm

Instruction to the users: Before doing the analysis, users may share the information about the expected range of surface area for their samples with the instrument operator.

Internal	External Academic Institutes	National R&D Lab	Industry
200/- per sample	500/- per sample + GST	500/- per sample + GST	500/- per sample + GST
