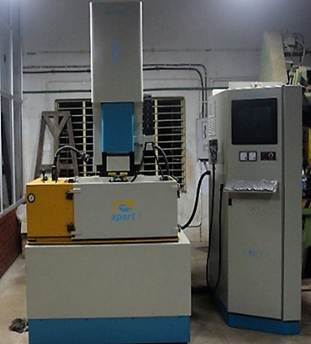

Name of the equipment: CNC Die Sinking EDM Make & Model: Electronica I-Stem Registration ID- 3224899 Category of Instrument Production Engineering Application: Tool die making, Injection Moulding, Precision component manufacturing, Blind cavities, Blind keyways, Internal splines Description of Instrument CNC Die Sinking EDM machine is a precision tool that uses electric sparks to erode material from a workpiece, creating complex shapes and intricate designs in metal dies

Book through I-STEM: https://www.istem.gov.in/ Slot Booking Link I-STEM Slot Booking link for External User		Booking available for Internal and External Both Requisition form for Internal External
Faculty In-charge: Dr. Vikash Kumar Email ID: vikash@nitc.ac.in Phone number:  +91-8638366093	Technical Staff: Sanal PR (TA SG I)   sanal@nitc.ac.in Jithin Krishna M (TA) jithinkrishnam@nitc.ac.in Jijeesh k (ST) jijeeshk@nitc.ac.in		Department MED Office Email ID medoffice@nitc.ac.in Location Production Engineering Lab Production Block Lab Phone No 0495-2286450

Instrument Technical Description and Major Specifications:

Longitudinal travel (x) - 400mm

Transverse travel (y) - 300mm

Max permitted load on the table - 1000kg

Max electrode weight - 50kg or more without c axis 25kg or more with c axis

Max work piece height - 250mm

Type of sample Required: Conducting Samples only

Internal	External Academic Institutes	National R&D Lab	Industry
200/- per hour	250/- per hour + GST	250/- per hour + GST	250/- per hour + GST
