Name of the equipment:

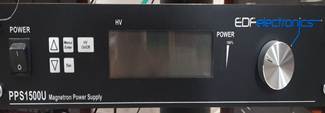

Pulsed DC Power Supply

Make & Model:

EDF Electronics PPS1500U

I-Stem Registration ID:

3236921

Category of Instrument: Hardware for Fabrication

Types of Analysis / Testing: NA

Application: Plasma generation, Sputtering

Description of Instrument: This is a 1000W Pulsed DC power supply for generating plasma in Sputtering system

Book through I-STEM:

https://www.istem.gov.in/

Slot Booking Link

I-STEM Slot Booking link for External User

Booking available for

Internal and External Both

Requisition form for

Internals

Externals

Faculty In-charge:

Dr. Venu Anand

Email ID:

venuanand@nitc.ac.in,

Phone number:

04952286703

Technical Staff:

Vishnu PS (ST)

vishnups@nitc.ac.in

Department

ECED

Office Email ID

ecedoffice@nitc.ac.in

Location

Block II, Room no: 208

Project Lab

Electronics and Communication Engineering Department

Lab Phone No

Features of the equipment

ü  Mode:  DC and Unipolar Pulsed DC

ü  Output Voltage and Current:
0 – 1000 VDC negative

            0 – 3000 mA (1 mA step)

ü  Output Power:

      1500W max in DC mode

 900W in Pulsed DC mode

ü  Frequency:

Up to 300 kHz frequency

ü  Regulation type:

Power, current and voltage

Unique features/Measurement capabilities, if any

Instrument Technical Description and Major Specifications (This Specifications Limited to Major 5)

Measurement/Sample specifications:

NA
