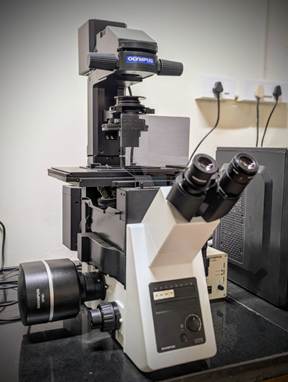

Name of the equipment: Inverted Microscope Make & Model: Olympus, IX73 I-Stem Registration ID: 3245419 Category of Instrument: Imaging Types of Analysis / Testing: Imaging Application: Transmission & fluorescence imaging Description of Instrument Olympus IX73 is a high-performance inverted microscope designed for advanced live-cell imaging, offering exceptional optical quality, modular flexibility and robust stability.
Book through I-STEM: https://www.istem.gov.in/ Slot Booking Link I-STEM Slot Booking link for External User	Booking available for Internal and External Both Requisition form for Internals Externals

Faculty In-charge: Dr. Mausumi Chattopadhyaya Email ID: mausumi@nitc.ac.in Phone number: 9433710271	Technical Staff: Ruther Tyson Lewis Email ID: ruthertl@nitc.ac.in Phone number: 9845965130	Department Chemistry Office Email ID: chyoffice@nitc.ac.in Location Sophisticated Instruments Lab, Dept. of Chemistry

Features of the equipment · UIS2 optical system for high-resolution imaging. · Modular design Fluorescence imaging	Unique features/Measurement capabilities, if any
Instrument Technical Description and Major Specifications (This Specifications Limited to Major 5) § Revolving nose pieces (4X, 10X, 20X, 40X, 60X). § Focus Stroke: 10mm. § 30W halogen illuminator § Wide field (FN22) observation tube. § Stage Stroke: X:114mm, Y:75mm with stage position locking function. § Fluorescence light source: 100W Hg lamp. § Max pressure: 40MPa	Measurement/Sample specifications:

· Minimum No. of Days Required for Analysis: 1day

	Solid/Liquid samples
NIT Calicut User	Rs. 10
External Academia Research institute User	Rs. 100
National lab User	Rs. 100
Industry User	Rs. 200
