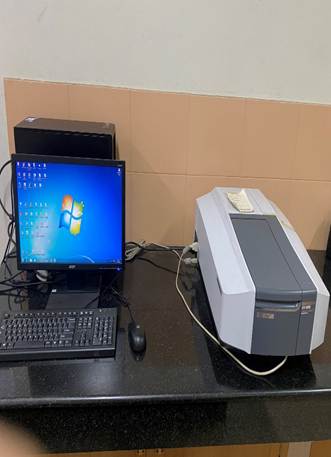

Name of the equipment: Shimadzu UV-2600 Spectrophotometer (UV-2600) Make & Model: Shimadzu & UV-2600 I-Stem Registration ID- 3237565 Category of Instrument Analytical analysis Types of Analysis / Testing Analytical - Solid/Liquid sample Application: It is useful for the checking of absorption, transmittance, reflectance in solution and solid-state sample. Description of Instrument Analyzing organic and inorganic compounds, biological samples, optical materials.
Book through I-STEM: https://www.istem.gov.in/ Slot Booking Link I-STEM Slot Booking link for External User	Booking available for Internal and External Both Requisition form for Internals Externals

Faculty In-charge: Dr. Parameswaran P. Email ID: param@nitc.ac.in Phone number:  +91-9400282159	Technical Staff: Vinay Kumar (TA) Email ID: vinaykumar@nitc.ac.in Contact Number: +91-9131541081	Department Chemistry Office Email ID chyoffice@nitc.ac.in Location PG Instrumentation Lab Lab Phone No ……………………………….

Features of the equipment ü A double beam, single-monochromator optical system. ü Perfect for a wide variety of applications. ü Measures slight differences in absorbance.	Unique features/Measurement capabilities, if any Compact Design. Ø Low noise performance.
Instrument Technical Description and Major Specifications (This Specifications Limited to Major 5) Dimension: 450 mm x 600 mm x 600 mm Pressure Range: 0-200 kPa Operating Temperature: (i) 15^0C  to 35^0C Power requirements: AC 100 to 240V, 50/60Hz, 170 VA Operating humidity: 35 to 80%  ( nocondensation, less than 70% above 30^0C	Measurement/Sample specifications:       The sample preparation is very general and concentration should be 0.1 mm to 1 mm.

· Quantity: For liquid– 2.5ml or more, for solid-16*32(W*H) minimum and max 80W*40H up to 20 mm thickness.

· Sample Type: Solid and liquid.

· Pre-preparation: The sample should be in a physical state, quantity, and level of preparation that allows the UV-Vis light beam to interact with it.

· User instructions: Always run a proper baseline correction using a blank sample before measuring your actual samples.

· Type of Samples to be Analyzed – Solid and liquid.

· Maximum No. of Samples Accepted at a Time- 10/day solid samples, 20/day liquid samples.

· Minimum No of Days Required for Analysis – 1 week

Internal	External Academic Institutes	National R&D Lab	Industry
20/-	200/-	200/-	400/-
