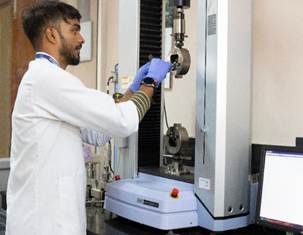

Name of the equipment: Universal Testing Machine Make & Model: SHIMADZU, AG-X plus 10KN I-Stem Registration ID- 3245709 Category of Instrument Mechanical testing Instrument Types of Analysis / Testing Tensile Testing, Compression Testing. Application: · Material Testing · Quality Control · Research and Development · Failure Analysis. Quality Assurance Description of Instrument These machines are used to test the mechanical properties of materials.

Book through I-STEM: https://www.istem.gov.in/ Slot Booking Link I-STEM Slot Booking link for External User

Booking available for Internal and External Both Requisition form for Internals Externals

Faculty In-charge: Dr. Shiny Joseph Email ID: shiny@nitc.ac.in Phone number:  0495 228 5404

Technical Staff: Muhammed Munaver muhammedmunaver@nitc.ac.in Sreeraj PV sreerajpv@nitc.ac.in

Department CHED Office Email ID chedoffice@nitc.ac.in Location Room No. 102A, Department of Chemical Engineering Lab Phone No 0495 228 5484

Features of the equipment ü Test Modes: They support various test modes such as tension, compression, tear, and shear testing. ü Accuracy: UTMs provide precise and accurate measurements of force, displacement, and strain. ü Speed Range: They offer adjustable speed ranges for applying force or displacement at different rates, typically from very slow to high speeds.

Unique features/Measurement capabilities, if any

Instrument Technical Description and Major Specifications (This Specifications Limited to Major 5) § Load Cell: It incorporates a load cell or force transducer to measure the applied force accurately. § Crosshead: The crosshead moves vertically to apply tension or compression to the test specimen. § Control System: It includes a control system that regulates the test parameters such as load rate, displacement rate, and test duration.

measurement/sample specifications: Solid sample with a dimensions 1:7(B:L) in dumbbell shape.

· Should be solid sample

· Login to the ISTEM portal and book the slot.

· Samples can be sent in the address,

Muhammed Munaver,

Technical Assistant,

Department of Chemical engineering,

NIT Calicut,

NIT Campus PO-673601

Calicut, Kerala.

Internal	External Academic Institutes	National R&D Lab	Industry
250	500	500	1000
