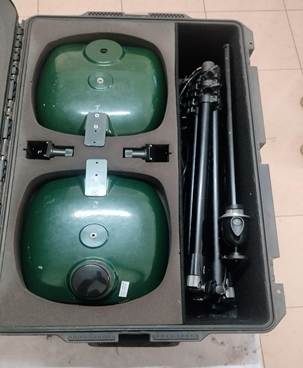

Features
of the equipment
✔ Non-invasive: Infrared beam detection, no road
cutting.
✔ Multi-purpose: Counts, classifies, measures
speed, identifies lanes, and more (red light, heavy vehicle, etc.).
✔ Precise: Uses overlapping infrared beams
and accurate timing.
✔ Smart: On-board processing with
configurable classification.
✔ Real-time & Logging: Streams and stores data.
|
Unique
features/Measurement capabilities, if any
⮚ Dual IR Beams for Detailed Wheel
Analysis:
Provides more data than single-beam systems.
⮚ Precise Trajectory Analysis: Can infer wheel width and
lateral position.
⮚ Robust Lane Identification: Uses parallel and crossed beams.
⮚ High Accuracy: Reliable counting,
classification, and speed measurement in diverse conditions.
|
|
Instrument
Technical Description and Major Specifications (This Specifications Limited
to Major 5)
Detection: Dual IR beams forming 4
pathways.
Measurements:
● Speed: 5-250 km/h, ±0.5%
accuracy.
● Classification: Axle-based,
>98% accuracy (20+ classes in India).
● Volume: >99.9% accuracy
Data & Communication:
● Output: Plain text.
● Interfaces: RS-232, Ethernet.
● Remote (Optional): GSM, etc.
Environment
& Physical:
● Temp: -20°C to +70°C (typical).
● Power: Low voltage DC.
● Enclosure: Weatherproof (IP65+).
Installation: Pole-mounted, straightforward alignment.
|
Measurement/Sample
specifications:
● Speed: km/h, 5-250 range, ±0.5%
accuracy. Handles low speeds well.
● Classification: IRC-aligned scheme (2-wheelers,
3-wheelers, cars, buses, trucks, etc.), 10-20+ classes, >95% accuracy,
adapted for local vehicles.
● Volume: Vehicles/time, >99% accuracy,
by class.
● Lane ID: For multi-lane roads.
● Time: IST timestamp with milliseconds.
Sample
Data: Includes
date, time, lane, speed (km/h), class code, and description.
|
