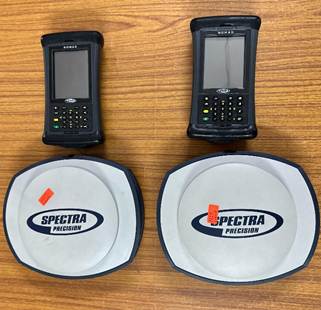

Name of the equipment: SP80 GNSS receiver Make & Model: make:Spectra precision model: SP80 I-Stem Registration ID- Category of Instrument High-Precision GNSS Receiver Types of Analysis / Testing High Precision Positioning and Surveying Analysis Application: Land boundary mapping, site planning. Description of Instrument The sp80 dgps is a high accuracy gnss receiver for professional surveying

Book through I-STEM:  https://www.istem.gov.in/ Slot Booking Link I-STEM Slot Booking link for External User

Booking available for Internal and External Both Requisition form for  Internals Externals

Faculty In-charge: Dr. AGILAN V Email ID: agilan@nitc.ac.in Phone number: 04952286251

Technical Staff: Mithun sai das mithunsaidas@nitc.ac.in Sridhara K sridharak@nitc.ac.in

Department CED Office Email ID cedoffice@nitc.ac.in Location Room No. 107, Main building Lab Phone No 04952286244

Features of the equipment ü High-Precision GNSS: Provides centimeter-level accuracy ü Real-Time Kinematic (RTK) Corrections ü Can be used globally with proper reference stations ü Multiple Connectivity Options: Supports Bluetooth, Wi-Fi, and cellular	Unique features/Measurement capabilities, if any Ø Patented Z-Blade technology  Ø 240-channel 6G ASIC) Ø Patented SBAS ranging Ø Patented Strobe™ Correlator for reduced GNSS multi-path
Instrument Technical Description and Major Specifications (This Specifications Limited to Major 5) § Physical Characteristics:Size  22.2 x 19.4 x 7.5 cm  Weight  1.17 kg § 240 GNSS channels § Recording Interval:0.05-999 seconds § Supported data formats: ATOM, CMR, CMR+, RTCM 2.1, 2.2, 2.3, 3.0, 3.1 and 3.2 (including MSM), CMRx and sCMRx (rover only)	Measurement/Sample specifications: Up to 20 Hz real-time raw data (code & carrier and position output) NMEA 0183 messages output Real-Time Kinematic Position (Horizontal Accuracy: 8 mm + 1 ppm,Vertical Accuracy: 15 mm + 1 ppm )

· Testing Requirements: Specify any particular tests or scenarios. (For GNSS receiver, this might include specific environmental conditions, accuracy checks, or data logging tests or duration of use.

· User instructions: power on the device, connect it to a data controller via Bluetooth or Wi-Fi, and configure it as a base or rover for data collection. Ensure good satellite visibility, charged batteries, for optimal performance.

· Battery Duration: The receiver is designed to operate for about 10 hours with both batteries fully charged, assuming GNSS is on

Internal	External Academic Institutes	National R&D Lab	Industry
50000/day	60000/day	60000/day	75000/day
