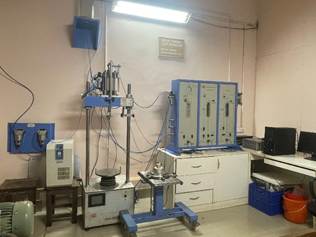

Name of the equipment: Cyclic Triaxial Set up Make & Model: HEICO; Model: HS28.630 & Sr no. 1505188 I-Stem Registration ID- 3220822 Category of Instrument Geotechnical Engineering Types of Analysis / Testing Soil Sample Application: Assessing the cyclic strength and liquefaction resistance of soils. Description of Instrument Sinusoidal axial loading with frequency up to 10 Hz.

Book through I-STEM: https://www.istem.gov.in/ Slot Booking Link I-STEM Slot Booking link for External User

Booking available for Internal and External Both Requisition form for Internals Externals

Faculty In-charge: Dr. Renjitha Mary Varghese, Email ID: renjitha@nitc.ac.in, Phone number:  +91-9496887320

Technical Staff: Nayana P nayanap@nitc.ac.in Lini Ignatius C liniignatiusc@nitc.ac.in Ajith Augusthy  ajithaugusthy@nitc.ac.in

Department CED Office Email ID cedoffice@nitc.ac.in Location Geotechnical Lab, Department of Civil Engineering Lab Phone No 0495-2286245

Features of the equipment ü Used for conducting Unconsolidated Undrained (UU), Consolidated Undrained (CU), and Consolidated Drained (CD) triaxial tests on soil specimens under dynamic condition ü Allows testing under different confining pressures (σ3) and dynamic loading conditions.	Unique features/Measurement capabilities, if any Ø Resilience Modulus can be determined
Instrument Technical Description and Major Specifications (This Specifications Limited to Major 5) § LVDT displacement 0.01mm-50mm § Load cell 5kN § Pressure Sensor 0.01kg/cm2 to 10kg/cm2 § Universal Load Cell § Maximum dynamic load 5kN. § Frequency – 1 to 10 Hz.	Measurement/Sample specifications: § 38mm, 50mm and 100mm dia § All kind of soil samples

· All soil sample (Clay, Silt, Sand, etc) minimum 1 Kg

Internal	External Academic Institutes	National R&D Lab	Industry
2000/- per sample	9000/- per sample	9000/- per sample	15000/- per sample
