Name of the equipment:

500kN Servo Hydraulic Actuator system

Make & Model:

BISS, Bangalore

Bi-03-Ec-801-05

I-Stem Registration ID-

……………………..

Category of Instrument

(Advanced Manufacturing facility / Characterization and Testing / Computational Facility / Bioscience and Technology / Sample preparation)

Types of Analysis / Testing

1. Quasi static cyclic load testing on beam column joint

2. Cyclic three-point load testing on beam

3. Lateral cyclic load test on concrete frame

Application:

1. Strain controlled load application

2. Quasi static reverse cyclic loading.

Description of Instrument

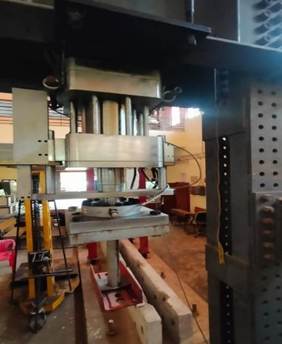

A 500kN Servo Hydraulic Actuator system

bio-printer for engineers and researchers

Book through I-STEM: https://www.istem.gov.in/ Slot Booking Link I-STEM Slot Booking link for External User		Booking available for Internal and External Both Requisition form for Internals Externals
Faculty In-charge: Dr. Ajeesh S. S. Email ID: ajeeshss@nitc.ac.in Phone number: 0495 228 6238	Technical Staff: Noushad K K (TA) noushadkk@nitc.ac.in Jeyeshkumar (TA) jeyesh@nitc.ac.in Nithya B S (TA) nithyabs@nitc.ac.in		Department CED Office Email ID cedoffice@nitc.ac.in Location Structural laboratory, Department of Civil engineering Lab Phone No 04952286840

Features of the equipment Servo hydraulic actuator is double ended double acting high precession linear actuator.	Unique features/Measurement capabilities, if any
Instrument Technical Description and Major Specifications (This Specifications Limited to Major 5) Model: AC-02-0250S Capacity: Compression 500kN, Tension 350kN	Measurement/Sample specifications: Stroke(mm): ±75mm Actuator area(mm2): Compression 25446.9; Tension 15943.58 Rod Thread (Depth) in mm: M50x2(70)

· Scale down model which matches with the Reaction frame and supporting floor.

· The expected failure load is below 100kN

· Any specific support condition required need to fabricated

S.NO.	Type of Analysis / Testing	Internal -	External Academic Educational Institutes	National R&D Labs	Industry
1	Axial Compression or Flexure (Cyclic/Monoto nic)	1000 per Hour	2000 per Hour	3000 per Hour	4000 per Hour
2	Axial Compression or Flexure (Cyclic/Monoto nic)	1000 per Hour	2000 per Hour	3000 per Hour	4000 per Hour
3	Axial Compression or Flexure (Cyclic/Monoto nic)	1000 per Hour	2000 per Hour	3000 per Hour	4000 per Hour
