Name of the equipment: TOWING TANK WITH CARRIAGE SYSTEM Make & Model: Allied Engineering company I-Stem Registration ID- 3222331 Category of Instrument Testing Types of Analysis / Testing Fabrication Application: · Wave Behaviour: Reflection and transmission analysis. · Model Testing: Scale models of wave energy converters and coastal protection structures. · Structural Impact: Pressure and force studies on coastal structures. Description of Instrument Wave flume dimensions 40m*2m*2m , Paddle unit holding frame , Plunger unit height maintain unit ,Capable of generating regular waves with wave height from 3 to 8 cm and period ranging between 0.7 to 1.4 s

Book through I-STEM: https://www.istem.gov.in/ Slot Booking Link I-STEM Slot Booking link for External User

Booking available for Internal and External Both Requisition form for Internals Externals

Faculty In-charge: Dr Anand K.V Email ID: kvanand@nitc.ac.in Phone number:  +91-9940084140

Technical Staff: Sharafudheen CT (TA) Sharafudheenct@nitc.ac.in 9847696031

Department CED Office Email ID cedoffice@nitc.ac.in Location Offshore lab, Department of Civil Engineering Lab Phone No 0495-2286246

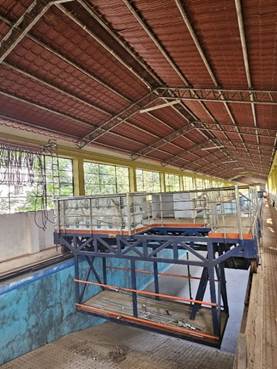

Features of the equipment ✔ Large Towing Tank (100m × 4m × 4m) for hydrodynamic testing ✔ Robust Carriage System (4.3m × 3m) with precision wheels on a round track ✔ Dual Siemens Motors ensuring smooth operation ✔ Variable Speed Control up to 3.5 m/s	Unique features/Measurement capabilities, if any ➤ Ship manoeuvring & stability studies ➤ Hydrodynamic performance analysis ➤ Propeller model testing
Instrument Technical Description and Major Specifications (This Specifications Limited to Major 5) · Tank Size: 100m × 4m × 4m · Carriage Frame: 4.3m × 3m · Drive System: Siemens IE2 series TEFC motors · Max Speed: 3.5 m/s	Measurement/Sample specifications: Ø Testing Capability: Scale model testing Ø Instrumentation Setups: Must be arranged based on testing requirements

· Sample Type: Scaled hydrodynamic models

· Pre-preparation: Must be structurally stable

· User Instructions: Submit instrumentation plans before testing

Sl no	Type of Analysis / Testing	Internal	External Academic Institutes	National R&D Lab	Industry
1	Testing	2000/day	Rs 1500/hr	Rs 2000/hr	Rs 5000/hr
2	Pre-testing installations	NA	Rs 2000/day	Rs 5000/day	Rs 10000/day
3	Post testing removal of models and other setup (no charge for first 3 working days)	Rs 2000/day	Rs 5000/day	Rs 5000/day	Rs 10000/day
