Name of the equipment: Channel Wave Gauge System & Accessories Make & Model: EMCON I-Stem Registration ID- ………………….. Category of Instrument Testing Types of Analysis / Testing Fabrication Application: Used for generating and analysing wave behaviour in coastal and offshore structure models. Supports wave data acquisition, signal measurement, and model testing. Description of Instrument A wave generation and signal measurement system with adjustable plunger motion (speed: 0–100 units; angle: 0–10°) and a 10-channel data acquisition system (17 Hz). Integrated for coastal and offshore model studies

Book through I-STEM: https://www.istem.gov.in/ Slot Booking Link I-STEM Slot Booking link for External User

Booking available for Internal and External Both Requisition form for Internals Externals

Faculty In-charge: Dr Anand K.V Email ID: kvanand@nitc.ac.in Phone number:  +91-9940084140

Technical Staff: Sharafudheen CT (TA) Sharafudheenct@nitc.ac.in 9847696031

Department CED Office Email ID cedoffice@nitc.ac.in Location Offshore lab, Department of Civil Engineering Lab Phone No 0495-2286246

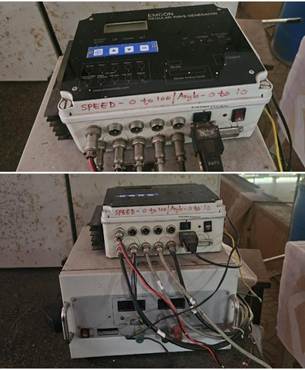

Features of the equipment · Controlled wave generation system · Adjustable plunger for height and motion · Integrated data acquisition for signal analysis	Unique features/Measurement capabilities, if any · Real-time wave signal measurement · Data collection via 10-channel DAQ (17 Hz) · Plunger motion control with variable speed and angle
Instrument Technical Description and Major Specifications (This Specifications Limited to Major 5) Plunger Motion Control System: Speed adjustable from 0 to 100 units; angle adjustable between 0 to 10 degrees. Data Acquisition System: 10 channels with a measurement capability of 17 Hz.	Measurement/Sample specifications: · Sample Type: Scaled models for coastal studies · Preparation: Stable, well-constructed models · Requirements: Pre-defined instrumentation setup

· Sample Type: Designed to measure signals; experimental setup should be planned based on specific needs.

· Pre-preparation: Not specified; depends on the experimental design.

· User Instructions: Users must plan their experiments to utilize the system's capabilities effectively.

Sl no	Type of Analysis / Testing	Internal	External Academic Institutes	National R&D Lab	Industry
1	It is to measure the signals, so has to be planned based on the need	2000/day	Rs 1500/hr	Rs 2000/hr	Rs 5000/hr
