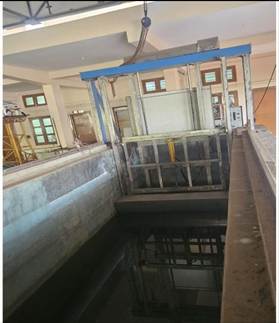

Name of the equipment: Basic hydraulic system & Wave maker unit Make & Model: Allied Engineering company I-Stem Registration ID- 3222332 Category of Instrument Testing Types of Analysis / Testing Fabrication Application: · Wave Behaviour: Reflection and transmission analysis. · Model Testing: Scale models of wave energy converters and coastal protection structures. · Structural Impact: Pressure and force studies on coastal structures. Description of Instrument • Wave flume dimensions 40m*2m*2m , Paddle unit holding frame , Plunger unit height maintain unit ,Capable of generating regular waves with wave height from 3 to 8 cm and period ranging between 0.7 to 1.4 s

Book through I-STEM: https://www.istem.gov.in/ Slot Booking Link I-STEM Slot Booking link for External User

Booking available for Internal and External Both Requisition form for Internals Externals

Faculty In-charge: Dr Anand K.V Email ID: kvanand@nitc.ac.in Phone number:  +91-9940084140

Technical Staff: Sharafudheen CT (TA) Sharafudheenct@nitc.ac.in 9847696031

Department CED Office Email ID cedoffice@nitc.ac.in Location Offshore lab, Department of Civil Engineering Lab Phone No 0495-2286246

Features of the equipment ✔ Wave Generation System with a versatile paddle unit ✔ Adjustable Plunger Unit for precise height control ✔ Capable of Generating Regular Waves with controlled height and period
Instrument Technical Description and Major Specifications (This Specifications Limited to Major 5) Ø Wave Flume Dimensions: 40m × 2m × 2m Ø Structural Components: Paddle unit holding frame, plunger unit height adjustment mechanism Ø Wave Generation: Regular waves with controlled parameters Ø Wave Parameters (Wave Height & Wave Period)	Measurement/Sample specifications: Ø Testing Capability: Scale model testing Ø Instrumentation Setups: Must be arranged based on testing requirements

ü Sample Type: Scaled model for wave testing

ü Pre-preparation: Model should be well-constructed for stability

ü User Instructions: Necessary instrumentation must be specified before testing

ü Testing & Analysis Details

• Types of Samples Analyzed: Scale models of coastal structures, wave energy converte

Sl no	Type of Analysis / Testing	Internal	External Academic Institutes	National R&D Lab	Industry
1	Testing	2000/day	Rs 1500/hr	Rs 2000/hr	Rs 5000/hr
2	Pre-testing installations	NA	Rs 2000/day	Rs 5000/day	Rs 10000/day
3	Post testing removal of models and other setup (no charge for first 3 working days)	Rs 2000/day	Rs 5000/day	Rs 5000/day	Rs 10000/day
