Name
of the equipment:
Sterio
Microscope with 5 MP HD Microscope Camera
Make
& Model:
High

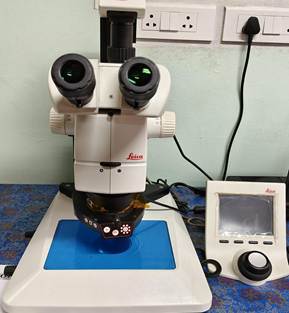

Performance Sterio Microscope: Leica M165 C
Microscope Camera: MC170 HD 5MP
I-Stem
Registration ID-
……………………..
Category
of Instrument
Optical
Imaging/Microscopy/
Characterisation & Testing
Types of Analysis / Testing
●
High-resolution
stereo imaging
●
Sample
observation & documentation
Application:
●
Environmental
sample inspection (microplastics, sediments, biofilms)
●
Material
surface analysis
● Morphological Analysis
●
Biological
specimen observation (insects, plant structures, etc.)
●
Quality
control in industrial and research applications
Description
of Instrument
A stereo microscope, also known as a dissecting
microscope or stereomicroscope, is a type of optical microscope designed
for low magnification observation of three-dimensional objects. Unlike
compound microscopes which are typically used for high magnification
viewing of thin, two-dimensional specimens such as cells or microorganisms,
stereo microscopes are optimized for observing larger, solid objects like
rocks, insects, plants, circuit boards, and other macroscopic specimens.
|
|
Features
of the equipment
✔ Motorized zoom &
focus for precise adjustments
✔ Apochromatic optics
for superior colour correction
✔ Integrated LED
illumination (transmitted & reflected)
✔ Ergonomic design for
long-duration use
✔ HD camera with
real-time imaging
|
Unique
features/Measurement capabilities, if any
⮚
8:1 Zoom Range
(0.78x–12.5x magnification)
⮚
High-resolution
imaging (5MP MC170 HD camera)
⮚
Software
compatibility (Leica Application Suite for image capture & analysis)
|
|
Instrument
Technical Description and Major Specifications
(This
Specifications Limited to Major 5)
o Optical System:
-
Magnification
Range: 7.8x – 125x
(with 10x eyepiece)
-
Working
Distance: 60mm (standard)
-
Field
of View: 30.5mm (at 1x)
- Resolution: 864 lp/mm (with 2x
objective)
o Illumination:
-
LED
transmitted & incident light (adjustable intensity)
o Camera Specifications (MC170 HD):
-
Resolution:
5MP (2592 x 1944 pixels)
-
Frame
Rate: 15fps @ full resolution
-
Sensor
Type: CMOS (color)
o Software
Compatibility:
-
Leica
Application Suite (LAS) for image capture & measurements
o Supported File
Formats:
-
.JPG,
.PNG, .TIFF
|
Measurement/Sample
specifications:
o Sample Size
-
Max
height: 60mm (working distance)
-
Recommended:
<50mm thick for optimal focus
o Sample Type:
-
Solid
or semi-solid (no liquids)
-
Reflective
& non-reflective surfaces
o Sample Preparation:
-
Should
be dry & stable for imaging
-
No
hazardous/corrosive materials
|
●
Quantity:
Single specimen (must fit within the 60mm working distance)
●
State: Dry or
fixed (no wet/unsealed samples)
●
Sample Type:
Solid or semi-solid (e.g., microplastics, insects, plant parts, engineered
materials)
●
Size
Limitations: Max height: 60mm (recommended <50mm for optimal focus)
●
Material Restrictions:
o No liquids, gels, or volatile
substances
o No corrosive/hazardous materials
●
Pre-Preparation:
o Ensure samples are clean and
dust-free
o Reflective surfaces should be
matte-coated if glare interferes with imaging
●
Documentation:
Provide sample details (material, expected features, areas of interest)
●
Submission
Protocol:
o Max samples per session: 1
(sequential imaging for multiple specimens)
o Advance booking required for
time-sensitive samples
●
Turnaround
Time:
o 30 minutes to 2 hours (depends on
complexity and required magnification)
●
Output
Delivery:
o Images provided in .JPG, .PNG, or
.TIFF format
o Optional measurements/data via
Leica Application Suite (LAS)
|
Internal
|
External Academic Institutes
|
National R&D Lab
|
Industry
|
|
300/- per sample
|
600/- per sample
|
600/- per sample
|
1200/- per sample
|
|
