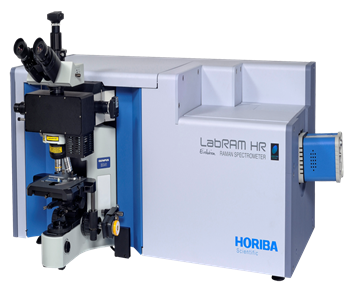

Name of the equipment: Confocal Raman Spectrometer Make & Model: HORIBA, LabRam HR  Evo I-Stem Registration ID- 3245638 Category of Instrument characterization Types of Analysis / Testing characterization Application: Raman spectroscopy is a versatile analytical technique with widespread applications across various fields due to its non-destructive nature and ability to provide detailed molecular information Description of Instrument The LabRAM HR Evolution Raman microscope is ideally suited for both micro and macro measurements, and offer advanced Confocal imaging capabilities in 2D and 3D.
Book through I-STEM: https://www.istem.gov.in/ Slot Booking Link  ( Internal) I-STEM Slot Booking link for External User	Booking available for Internal and External Both Requisition form for Raman Spetrometer https://drive.google.com/file/d/1HT5ZYH4XIsMiQKZsfKYm9Hy5MAuaLClk/view?usp=drive_link

Faculty In-charge: Dr. Maneesh Chandran Email ID: maneesh@nitc.ac.in Phone number 0495 228 5119	Technical Staff:  Amala A K Email ID: crsadmin@nitc.ac.in	Department CMC Office Email ID xrdadmin@nitc.ac.in  crsadmin@nitc.ac.in Location Room No. 204 -A, Department of Material Science and Engineering Lab Phone No 0495 228 6545, 0495 228 6544

Features of the equipment ü Excitation sources: (a) 532 nm (100 mW)785 nm (100mW) 325nm (25mW) ü  Microscope Objectives: 10x,50x,100x and 40x,15x for UV laser ü XYZ Motorized stage for confocal Raman Imaging/Mapping with Single step size  resolution of 100 nm in XY direction and 10 nm in Z direction. ü It supports temperature dependent photoluminescence and Raman measurements from 77K to 873K Instrument Technical Description and Major Specifications (This Specifications Limited to Major 5) § Laser: 325 nm, 532nm, 785nm § Temperature Range:  77K to 873K § Thermoelectrically cooled CCD camera (1024x256 pixels)

Unique features/Measurement capabilities, if any ● Capability to perform Raman Measurements from 50 cm^-1to 4000 cm^-1 with  Highest Spectral Resolution of 1cm^-1.

· Quantity:  20 mg for powder and min. 4 ml for liquid sample

· User instructions: Should fill the details in the requisition form.

· Type of Samples to be Analyzed – All Raman active samples-solid, powder, thin film, filter paper and liquid

· Maximum No. of Samples Accepted at a Time- 12

· Minimum No of Days Required for Analysis – 3 days

Analysis charge per sample
	NIT Calicut (Internal Users)	Academic/University (Including GST)	National Lab/R&D (Including GST)	PSUs/pvt Ltd (Including GST)
Raman Spectrum	Rs. 200	Rs.472	Rs.708	Rs.1416
Raman Imaging/Mapping	Rs. 600	Rs.1416	Rs.2124	Rs.4248
